Description
This Pioneer Service Manual, carrying Order No. ARP2072, is the technical master reference for the Pioneer CLD-92 CD CDV LD Player. The CLD-92 is a sophisticated, multi-format player capable of handling Compact Disc (CD), Compact Disc Video (CDV), and LaserDisc (LD) media, distinguished by its high-quality construction and advanced circuitry. The manual explicitly targets qualified service technicians and sternly warns against use by the casual consumer, emphasizing that improper repairs can void the warranty and compromise the product’s safety and reliability. The specific model covered is the CLD-92/KU/CA type, indicating its power and region configuration for the North American market. The manual also instructs technicians to refer to the companion service manual ARP1853, CLD-91/KU/CA for detailed circuit and mechanism descriptions, confirming that the CLD-92 shares a core technical platform with its predecessor. The primary function of this service guide is to provide the necessary technical procedures, data, and component lists to accurately diagnose, repair, and maintain the CLD-92. This is essential for a high-end component like this, which relies on extremely precise optical and servo mechanisms for flawless playback of all three formats. The introductory pages of the manual immediately prioritize safety, featuring a stark WARNING regarding the use of lead solder, which contains chemicals recognized by health authorities as a reproductive toxicant. This mandatory safety warning sets the tone for the meticulous, professional standards required for all servicing operations. The manual reinforces these standards by mandating a Leakage Current Check as a final step in all repairs, ensuring the player maintains its original safety certification by restricting current leakage to all exposed metal parts to a maximum of $0.5 \text{ mA}$. This detailed and mandatory safety section underscores Pioneer’s commitment to ensuring that the product’s safety characteristics are not compromised during repair, which is a hallmark of manufacturer-issued service documentation.

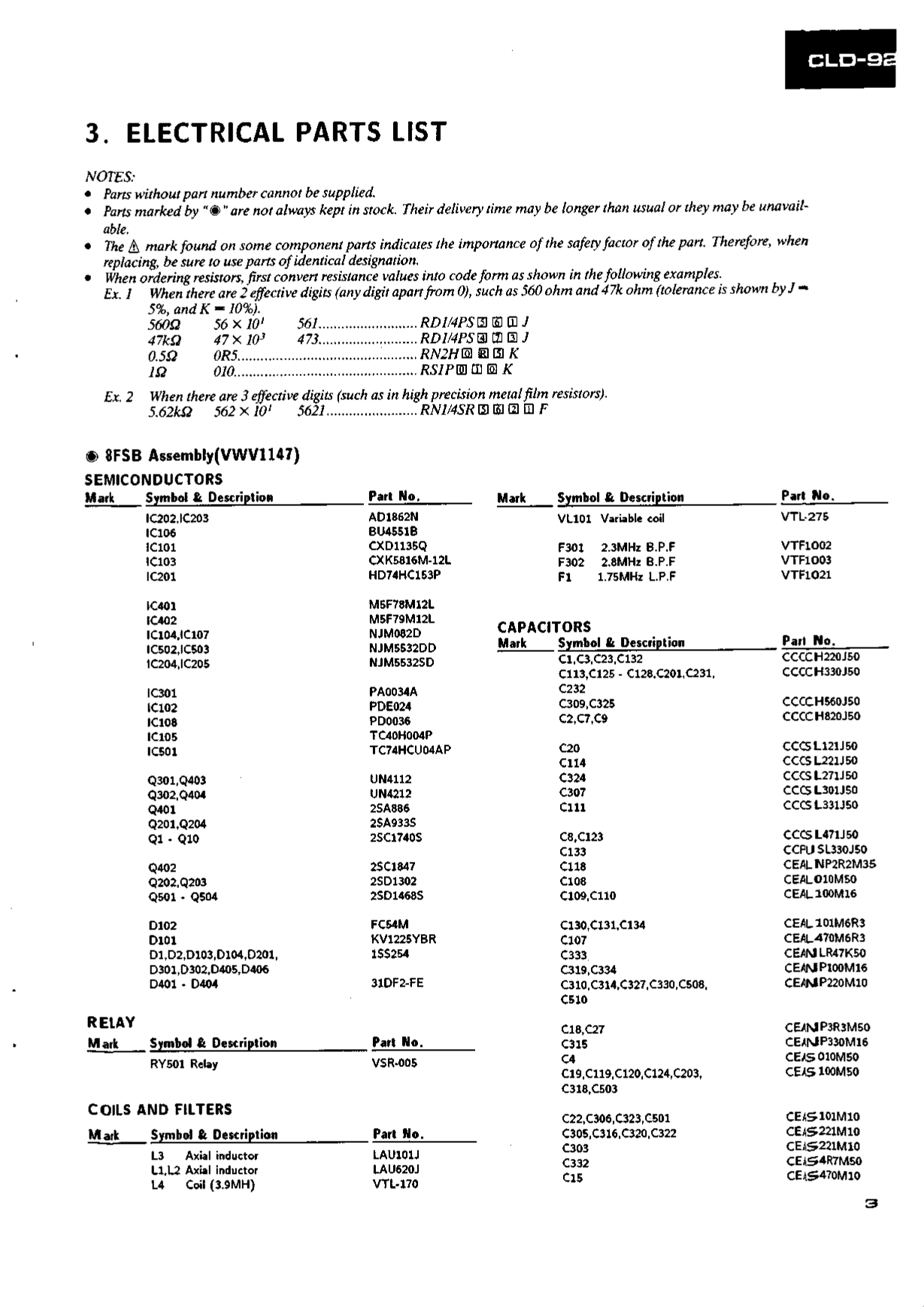

The depth of technical detail provided in this service manual is crucial for component-level repair and systematic troubleshooting of the CLD-92. The 3. ELECTRICAL PARTS LIST section provides a component-by-component breakdown of the circuitry, listing IC (Integrated Circuit)s, Resistors, Capacitors, Relays, and Coils by their circuit board symbol, part number, and value or description. For instance, the IC list includes key components such as the PD61205A, PD61204GP, and HD6433364P, which are central to the player’s control, display, and processing functions. Similarly, the Capacitors are listed with their precise value and tolerance, such as $100\text{pF}$ $5\%$, which is essential for ensuring that replacement components match the original specifications exactly, thereby preserving the player’s high-fidelity audio and video performance. This meticulous parts list is indispensable for technicians needing to replace a failed surface-mount component or a specific IC on the main digital board. Furthermore, the manual includes a section on 2. CONTRAST OF MISCELLANEOUS PARTS, which details the subtle differences in non-electronic components, like the AC Power cord, front panel, and various assembly parts, between the CLD-92/KU/CA and CLD-91/KU/CA types. This explicit comparison table aids technicians in correctly identifying and ordering the appropriate parts for either model, minimizing error and ensuring that replacements are functionally and aesthetically correct. This high level of component-specific detail confirms the manual’s role as a primary, exhaustive technical reference for component sourcing and electrical repair.
