Description
The manual is structured to provide service personnel with all necessary technical data, maintenance procedures, and component information.
-
Service Manual (Title Page): Identifies the document as Order No. ARP2743, covering the CLD-97 and CLD-98 models.
-
Model/Power Requirement Table: Specifies power requirements based on the model variation:
-
CLD-97 (KU/CA): AC120V only.
-
CLD-98 (KU/CA): AC120V only.
-
CLD-97/98 (SD): AC110V, 120V – 127V, 220V, 240V (switchable).
-
-
-

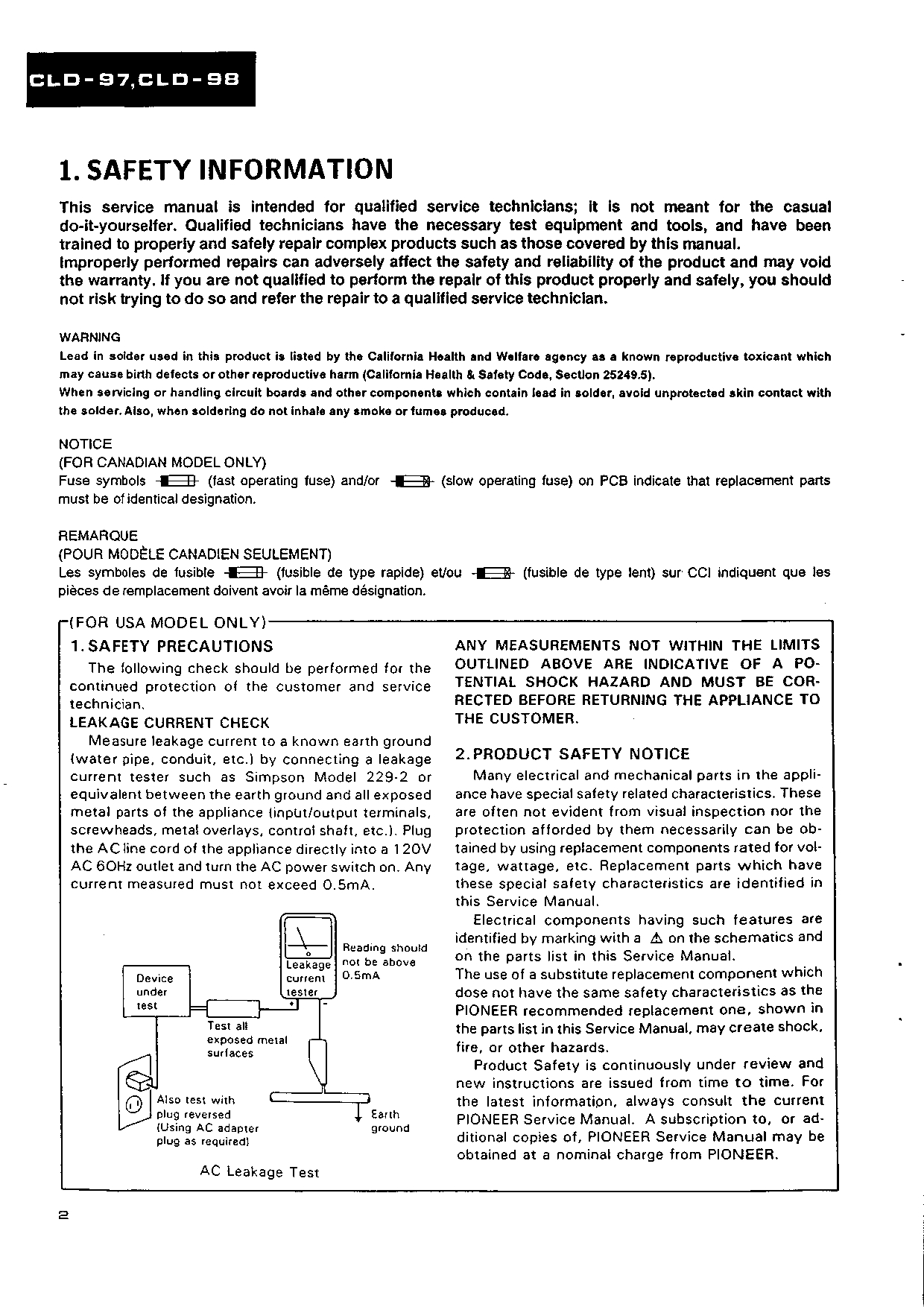

1. SAFETY INFORMATION: Essential warnings and special safety procedures for servicing.
-
WARNING/NOTICE/REMARQUE: Alerts regarding lead content, fuse symbols/replacement, and a general caution that the manual is not for the casual repairer.
-
1. SAFETY PRECAUTIONS: Requirements for performing a Leakage Current Check on all exposed metal parts before returning the appliance to the customer. A diagram illustrates the procedure (AC Leakage Test).
-
2. PRODUCT SAFETY NOTICE: Discusses critical safety-related characteristics and the use of identical or Pioneer-specified replacement components, emphasizing components marked with a $\triangle$ on schematics and parts lists.
-
-
2. EXPLODED VIEWS, PACKING AND PARTS LIST: Diagrams and lists for all components, focusing on correct assembly and part identification.
-
NOTES: Warnings about parts marked with “NSP” (Not Supplied Parts) and $\triangle$ (critical safety parts).
-
2.1 PACKING AND PARTS LIST: A table listing Mark No., Description, and Parts No. for all packing materials and accessories (e.g., Operating Instructions, Remote Control, Power cord, Batteries). An exploded view diagram shows the external packaging components.
-
