Description
The Pioneer ELITE CLD-97 is recognized as one of the best-performing LaserDisc players ever produced, often praised for its exceptional video output quality. As an ELITE model, it integrates advanced analog and digital processing for all three media formats: Compact Disc (CD), Compact Disc Video (CDV), and LaserDisc (LD). The necessity of comprehensive documentation is paramount for such a complex device, whether for routine maintenance or performance modification. While the official Service Manual is not explicitly provided in the images, its structure, based on contemporary Pioneer manuals (like the CLD-91/92/95), would follow a professional, exhaustive format, starting with Safety Information and progressing through Schematics and P.C. Board Diagrams and crucial chapters on Adjustments and Self-Diagnostic Functions. This official resource is strictly for qualified service technicians and details the sensitive optical pickup, servo mechanisms, and intricate power supply circuits required to maintain the player’s world-class performance. For instance, the safety section would mandate checks such as the AC Leakage Test, requiring current leakage to ground from exposed metal parts to be under $0.5 \text{ mA}$, and would warn about the use of lead solder and the importance of using only Pioneer-recommended replacement parts to preserve safety integrity. The CLD-97, however, has a known characteristic: its Digital Noise Reduction (DNR) feature automatically engages upon power-up, which some video enthusiasts find detrimental to image quality. The provided modification guide addresses this specific, advanced user need, revealing the level of specialized knowledge and dedication required to master this elite player. The existence of such a detailed, user-created modification guide underscores the CLD-97’s status as a component frequently subject to high-level customization for optimal output, bridging the gap between standard operation and audiophile/videophile performance goals.

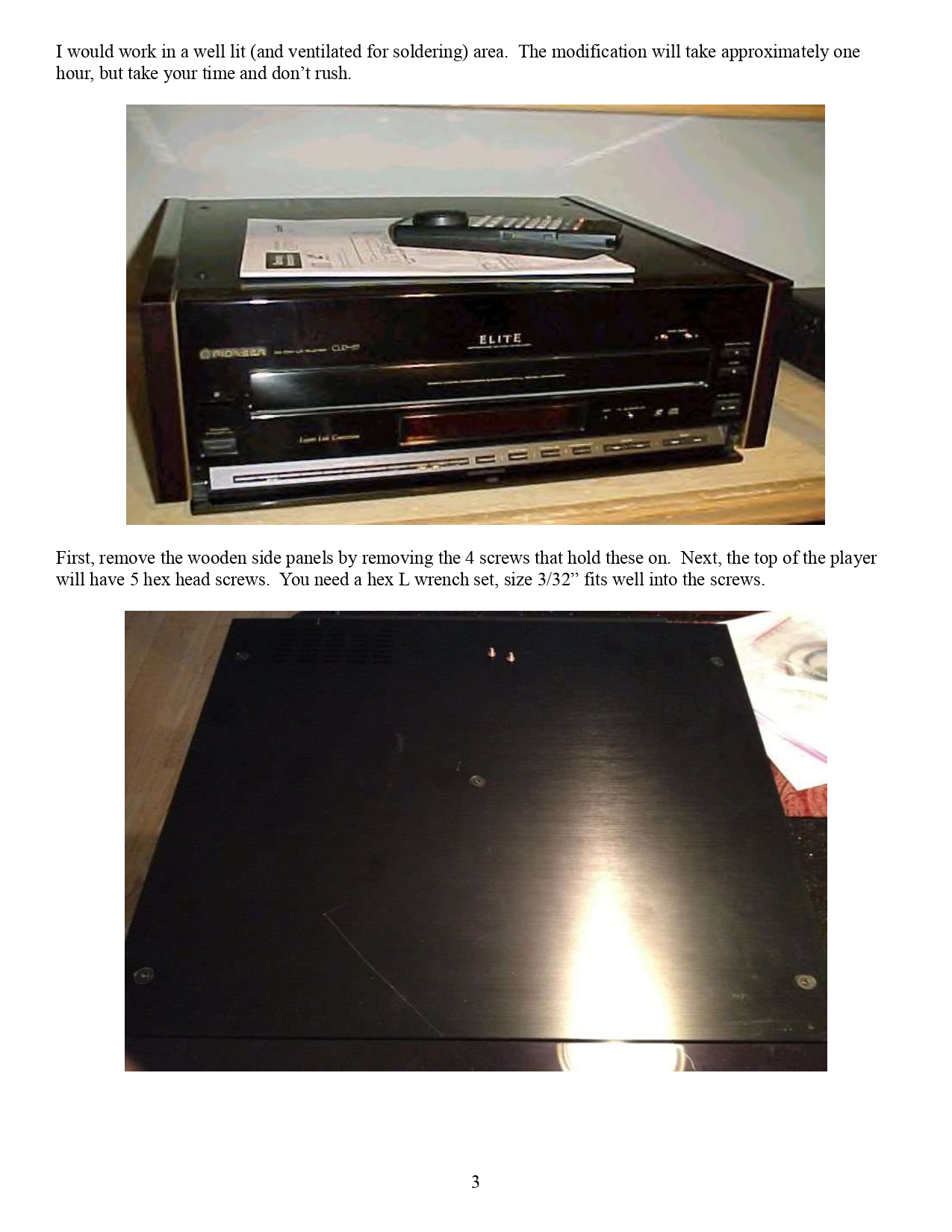

The provided Digital Noise Reduction (DNR) Auto-off Mod DIY Installation Guide exemplifies the CLD-97’s status as a highly technical device whose inner workings are a focus for performance enthusiasts. This modification is designed to reverse the default setting of the DNR feature, ensuring the unit powers up with DNR off (which can then be manually toggled on if desired). The guide is an advanced technical document itself, providing a component schematic that details the necessary electronic modification: adding a $3.3\text{k}\Omega$ resistor and a $1/4\text{ watt}$ transistor (or equivalent $2\text{SC}1740$) to specific pin connections. The schematic explicitly labels the wiring connections, such as IC502, Pin 5, Blue and J4, Pin 3, White, as well as the power source ($+5 \text{ Volt, Purple}$) and Ground, Black. This is highly specific, circuit-level instruction that demonstrates the modification involves working directly with the player’s core processing board. Furthermore, the guide includes physical disassembly steps, requiring the removal of the decorative wooden side panels (using four screws) and the top cover (using five hex head screws, requiring a $3/32\text{“}$ hex L wrench). This level of mechanical and electrical detail necessitates that the user possess soldering experience, a multimeter, and precision tools, confirming that the CLD-97, even in the hands of enthusiasts, is treated as a component requiring professional-grade skills for deep maintenance and modification. The guide also emphasizes safe work practices—working in a well-lit and ventilated area—and includes a critical disclaimer that the individual providing the mod kit offers no warranty on components or damage to the player, highlighting the high-risk, high-reward nature of such specialized work.
