INSTANT DOWNLOAD: Yamaha APD-2 User Guide

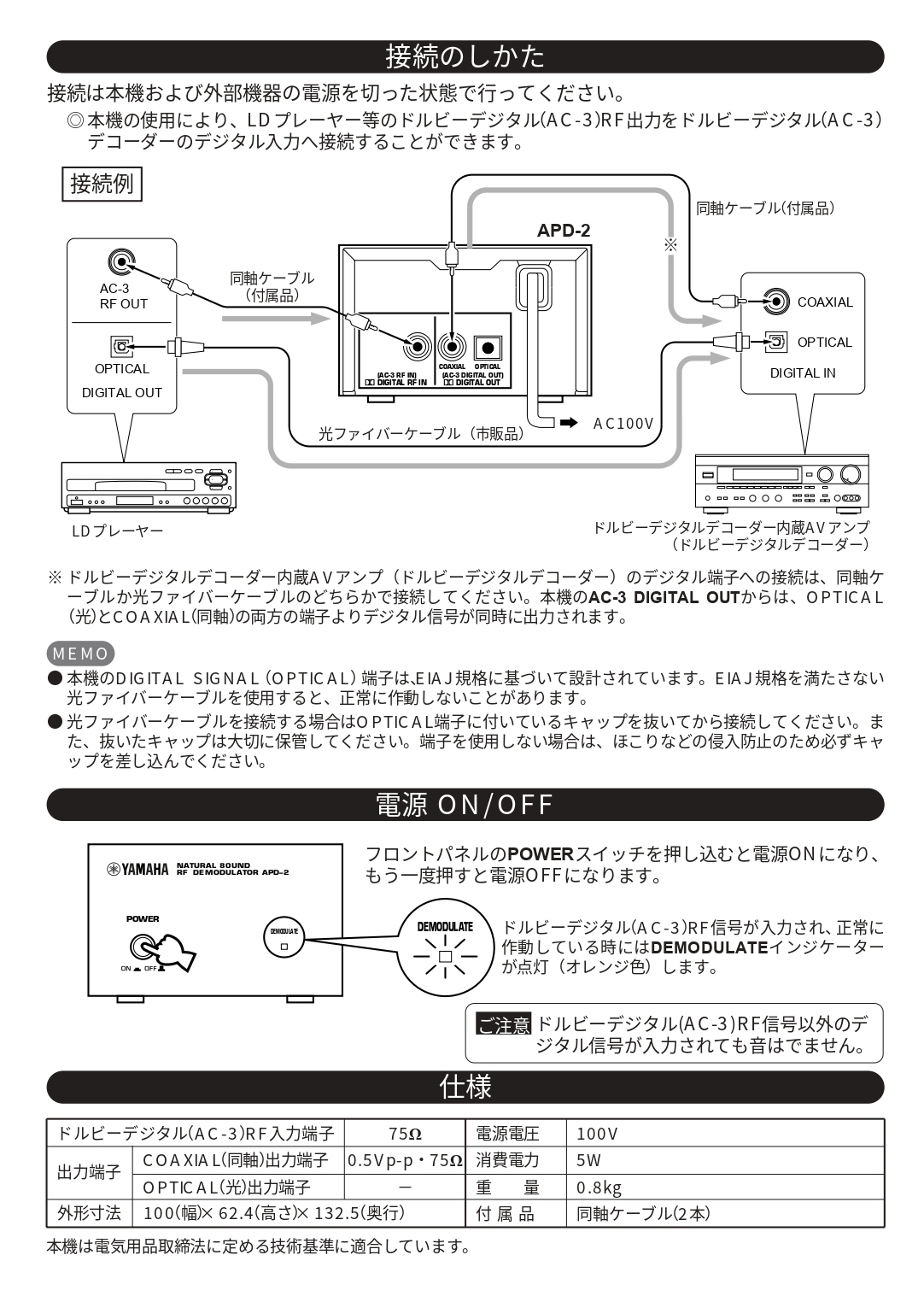

This manual is the absolute definitive guide for the YAMAHA Natural Sound RF Demodulator APD-2, an essential piece of vintage home theater equipment designed to extract high-fidelity, discrete Dolby Digital ($\text{AC-3}$) 5.1-channel audio from compatible LaserDisc players. The document is expertly organized to ensure the user can correctly and safely set up this technically specialized component, which converts the LaserDisc player’s complex, raw $\text{RF}$ signal into a usable digital format for modern $\text{A/V}$ receivers. Its structure prioritizes the user’s safety and the unit’s longevity, starting with a comprehensive section on Safety Precautions ($\text{安全上のご注意}$) that clearly defines three levels of risk: $\text{DANGER}$, $\text{WARNING}$, and $\text{CAUTION}$, along with translating pictograms into actionable instructions. The introductory text highlights the unit’s core technical capability: the conversion of $\text{AC-3 RF}$ signals to digital and the simultaneous output through both OPTICAL and COAXIAL terminals, a functional feature that greatly enhances system integration flexibility. The $\text{DANGER}$ warning regarding the required $\text{AC 100V}$ power supply and the strict limitation to Japanese domestic use is a paramount instruction that cannot be overstated, acting as a crucial safeguard against electrical hazards and product damage for international users. The remainder of the guide details every aspect of the device, from its functional Features to the steps necessary for proper Connections to a decoder or amplifier. It serves not merely as a set of operating instructions, but as the technical blueprint necessary to interface this legacy audio technology successfully with contemporary sound systems, making it an indispensable resource for collectors, enthusiasts, and anyone looking to maximize the acoustic performance of their vintage LaserDisc collection. The manual’s detail ensures that even complex wiring and environmental setup considerations are clearly addressed, helping users avoid interference and prolong the life of their investment. This comprehensive approach is what distinguishes the official guide as a required companion piece to the APD-2 hardware itself, guaranteeing the owner has full mastery over its specialized function and operational requirements.
